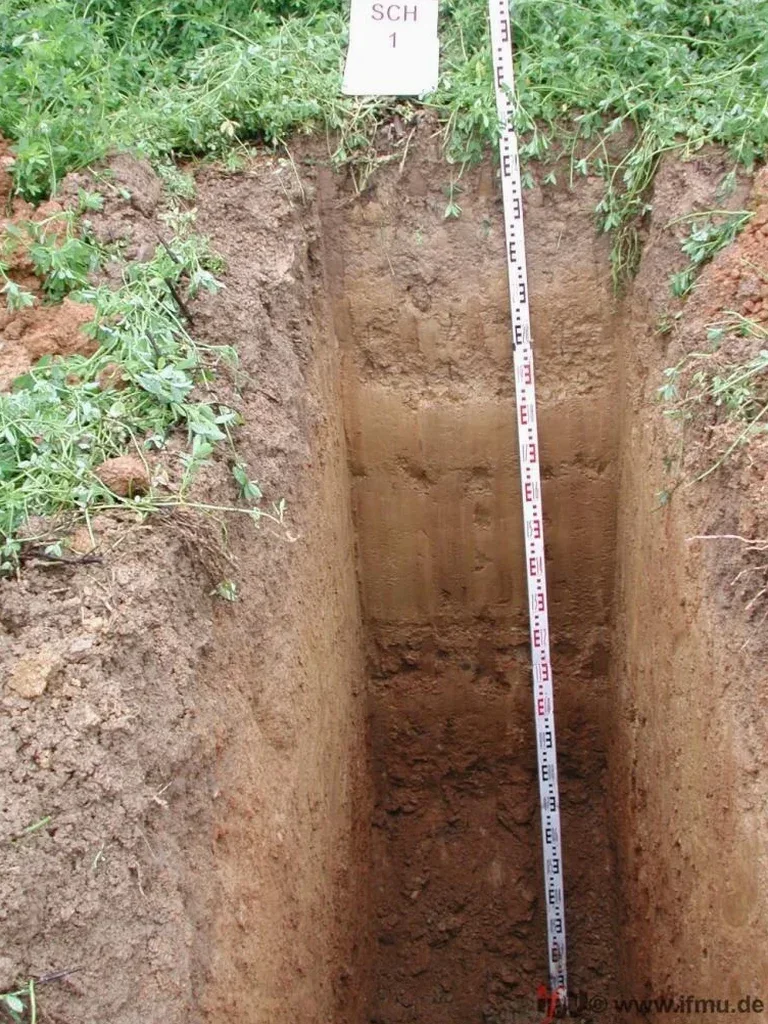

Exploratory Test Pit Services for Construction Projects in Santa Ana

Santa Ana sits on complex alluvial fan deposits from the Santa Ana River and Santiago Creek, where near-surface soils can shift from coarse gravels to silty clays within a few dozen feet. The 2022 California Building Code, incorporating the IBC, requires thorough subsurface investigation before any major construction. Our exploratory test pit service in Santa Ana addresses this directly—we excavate to depths of up to 14 feet, giving your structural engineer a clear window into the actual soil profile. Unlike boreholes that provide a narrow vertical core, a test pit lets us visually map strata changes, identify undocumented fill, and extract large undisturbed block samples. For projects in areas like the downtown historic district or the industrial corridors near the 55 freeway, this visual certainty means fewer change orders during earthwork. We log every pit according to ASTM D2487, ensuring your geotechnical report holds up under plan-check review.

A well-documented test pit in Santa Ana's alluvial soils can prevent six-figure foundation change orders by revealing what a boring might miss.

Methodology and scope

A common mistake in Santa Ana is assuming that one deep boring can represent the entire site—we have seen projects where buried construction debris from 1960s development was completely missed, leading to expensive foundation redesigns mid-project. A properly executed test pit program catches these surprises. Our excavations expose the soil face, allowing direct measurement of layer thickness, moisture condition, and the presence of organics or rubble. We document everything with high-resolution photographs and GPS-tagged logs. Sampling includes bulk bags for laboratory classification and Shelby tube specimens where fine-grained layers are encountered. When the pit exposes groundwater seepage, we record the inflow rate, which becomes critical for dewatering design. For projects on expansive soils common in the northeastern sections of the city, we also coordinate Atterberg limits testing to quantify the swell potential before your structural engineer finalizes the foundation type.

Site-specific factors

During a mixed-use project off East First Street, our crew opened a test pit that revealed a lens of saturated, loose sandy silt at 6 feet—material that would have been entirely missed by a standard SPT boring starting its sampling interval at 5 feet. The structural engineer immediately recognized the liquefaction potential and the risk of differential settlement under the planned mat foundation. Because we documented the layer in place, the design team adjusted the foundation with stone columns to densify the zone, avoiding a structural failure scenario. In Santa Ana, where the groundwater table can rise seasonally and old stream channels lie buried beneath decades of urban fill, the visual evidence from a test pit is not just data—it is liability protection. Skipping this step, or relying solely on probe-based testing in heterogeneous ground, leaves your project exposed to the exact conditions that cause post-construction litigation.

Reference standards

ASTM D2487 - Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), IBC 2022 (California Building Code) - Chapter 18: Soils and Foundations, Cal/OSHA Title 8, Section 1541 - Excavation, Trenching, and Shoring Safety Requirements, ASCE 7-22 - Minimum Design Loads and Associated Criteria for Buildings and Other Structures

Typical values

Parameter	Typical value
Maximum Typical Depth	14 ft (standard equipment)
Soil Logging Standard	ASTM D2487 (Unified Soil Classification System)
Sample Types Collected	Bulk disturbed, block undisturbed, Shelby tube
Groundwater Documentation	Seepage rate and stabilized level after 24h
Backfill Specification	Compacted to 95% relative density or per engineer's specification
Safety Compliance	Cal/OSHA trenching and excavation standards (Title 8, Section 1541)
Typical Pit Dimensions	4 ft x 8 ft or custom per access constraints

Common questions

How much does an exploratory test pit cost in Santa Ana?

The cost for a test pit in Santa Ana typically ranges from US$550 to US$870 per pit, depending on depth, access constraints, and whether laboratory testing of collected samples is included. If multiple pits are needed on the same site, the per-unit cost often decreases. We provide a fixed-price quote after reviewing your project plans and confirming underground utility clearances.

Do I need a permit for a test pit excavation in Santa Ana?

Generally, exploratory test pits on private property for geotechnical investigation do not require a city permit, but you must contact USA North 811 at least two working days before excavation to mark underground utilities. If the pit is in the public right-of-way, an encroachment permit from the City of Santa Ana Public Works Agency will be necessary. We handle the utility notification and can advise on the permitting process.

How long does a test pit stay open, and how is the site restored?

A typical test pit is excavated, logged, sampled, and backfilled within a single working day. We never leave an open excavation unattended. The soil is replaced in lifts and compacted to 95% relative density or per the geotechnical engineer's specification. The surface is graded to match the surrounding grade, leaving the site safe and accessible.

What can a test pit reveal that a boring or CPT cannot?

A test pit exposes a continuous soil face, so we can visually identify thin layers, buried debris, cobbles, or changes in cementation that a boring or CPT cone might miss or misinterpret. It also allows us to collect large, undisturbed block samples for advanced lab testing and to photograph the stratigraphy directly—evidence that is invaluable during plan-check review or if a dispute arises later.
