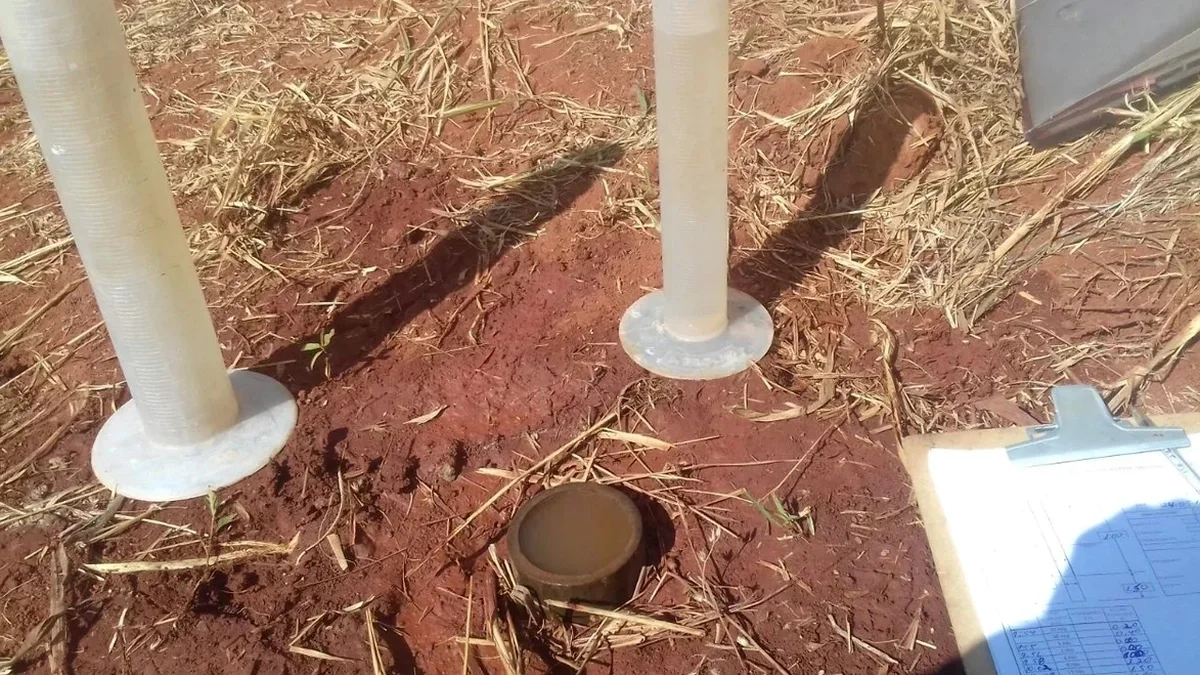

Field Permeability Testing (Lefranc/Lugeon) in Santa Ana

A common observation among geotechnical engineers working in Santa Ana is that groundwater conditions can vary significantly within a single site, often influenced by the city's location within the Santa Ana River floodplain. These variations demand precise field measurements rather than relying solely on laboratory estimates from disturbed samples. The Lefranc test provides a reliable method for measuring hydraulic conductivity in granular soils above the water table, while the Lugeon test evaluates rock mass permeability under pressure. In our experience, combining these in-situ methods with a thorough stratigraphic profile from SPT drilling gives the clearest picture of subsurface water flow. Whether designing a deep foundation or a dewatering system, understanding how water moves through the local alluvial deposits is essential for avoiding costly construction delays.

Accurate permeability data from a Lefranc or Lugeon test is not just a design parameter; it is the basis for predicting dewatering volumes and settlement risk in Santa Ana's layered alluvium.

Our service areas

Methodology and scope

The surficial geology beneath much of Santa Ana consists of Quaternary alluvial sediments, predominantly interbedded sands, silts, and clays deposited by the ancestral Santa Ana River. This depositional environment creates a complex hydrogeological setting where sand lenses act as conduits for groundwater, while clay layers form localized aquitards. A Lefranc test, performed at a constant or variable head in a borehole, targets these discrete intervals to determine the coefficient of permeability (k) with good spatial resolution. When we encounter more consolidated materials or need to evaluate fracture flow in the underlying formations, the Lugeon method becomes the preferred approach, as it quantifies the water take in lugeon units under staged pressures. The resulting data feeds directly into dewatering calculations and seepage analyses, often complementing a broader site characterization that includes CPT testing for continuous soil profiling. Without this level of detail, engineers risk misjudging the hydrostatic pressures that will act on retaining structures and basement slabs in Santa Ana's densifying urban core.

Field Permeability Testing (Lefranc/Lugeon) in Santa Ana — Technical reference — Santa Ana

Site-specific factors

The IBC and ASCE 7 standards require that foundation designs account for hydrostatic loads and seepage forces, a requirement that becomes particularly acute in Santa Ana where a shallow groundwater table is present in many neighborhoods south of First Street. An inaccurate permeability assessment can lead to underestimated uplift pressures on mat foundations or inadequate dewatering system capacity during excavation, which in turn triggers base instability and excessive ground loss. The layered nature of the local alluvium means that a single borehole test may not capture the full heterogeneity of the deposit; we often recommend correlating permeability data with a detailed grain size analysis to validate the in-situ results. The biggest contractual and safety risk we see is proceeding with a permanent shoring design without confirming the hydraulic conductivity of the soils that will be retained, as this directly influences the long-term drainage provisions and structural demands on the wall.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering1.biz

Reference standards

ASTM D6391 (Field Measurement of Hydraulic Conductivity), ASTM D4630 (Permeability of Rocks by Lugeon Method), ASCE 7-22 (Minimum Design Loads for Buildings), IBC 2024 (International Building Code, Chapter 18)

Typical values

Parameter	Typical value
Test Standard (Lefranc)	ASTM D6391 / ISO 22282-2
Test Standard (Lugeon)	ASTM D4630 / USBR procedures
Soil Types (Lefranc)	Granular soils, silts, weathered rock
Rock Types (Lugeon)	Fractured bedrock, sandstone, conglomerate
Test Intervals	1 m to 5 m sections, isolated by packers
Measurement Range (k)	1x10⁻⁷ to 1x10⁻² m/s (Lefranc)
Typical Report Output	k-value per interval, lugeon units, transmissivity

Common questions

What is the difference between a Lefranc test and a Lugeon test?

The Lefranc test measures permeability in soils and soft rocks, typically by adding or removing water from a borehole cavity and observing the rate of fall or rise over time. The Lugeon test is specific to rock masses; water is injected under pressure into an isolated section of a borehole, and the water take is recorded in Lugeon units. We select the method based on the material encountered: Lefranc for the alluvial sands and silts common in Santa Ana, and Lugeon if the investigation reaches the underlying San Diego Formation bedrock.

How much does a field permeability test cost in Santa Ana?

The cost for a Lefranc or Lugeon test program in Santa Ana typically ranges from US$660 to US$930 per test interval, depending on the depth, drilling setup, and number of intervals tested within a single borehole. A full-day program with multiple tests will be priced according to the total meterage and the required support equipment.

How many permeability tests do I need for my site?

The number of tests depends on the site heterogeneity and the project's risk category. For a typical commercial building in Santa Ana, we recommend a minimum of one test per distinct hydrogeological unit encountered in the exploratory borings. If the groundwater table is shallow and a permanent dewatering system is planned, we increase the test frequency to capture lateral variations in the alluvial strata.

Can you perform these tests in the same borehole as the SPT sampling?

Yes, the Lefranc test is routinely conducted in the same borehole after the standard penetration sampling is completed, provided the casing is advanced properly to isolate the test zone. For Lugeon tests, we use a dedicated drilling setup with packers to seal off the borehole section and prevent leakage around the casing, which requires a slightly different borehole preparation sequence.
