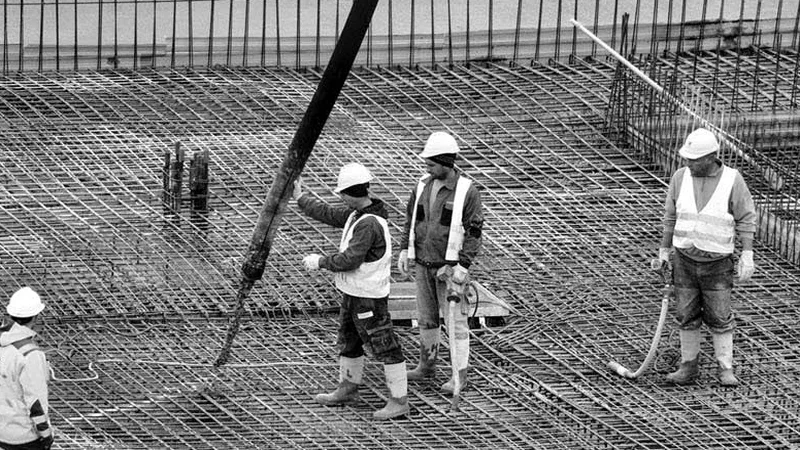

Raft Foundation Engineering in Santa Ana: Managing Seismic and Soil Demands

A five-story mixed-use building near the Santa Ana Civic Center started showing signs of distress before the framing was even complete. The original design assumed a uniform bearing layer, but the alluvial deposits beneath the site varied from stiff silts to loose sands within a single footprint. The fix required a complete redesign to a rigid mat foundation that could span the irregularities and limit differential settlement to less than half an inch. In Santa Ana, where the underlying geology shifts between ancient river channels and finer basin fill, a properly tuned raft slab often becomes the only practical solution that avoids an over-reliance on deep foundations. The city's proximity to the Newport-Inglewood Fault adds a seismic dimension that demands a careful evaluation of base shear transfer through a mat foundation system, and a thorough look at liquefaction susceptibility through a dedicated liquefaction analysis.

A properly designed raft foundation in Santa Ana's alluvial soils can reduce total settlement by 40% compared to isolated footings while providing inherent redundancy against seismic moments.

Our service areas

Methodology and scope

The subsoil profile across much of Santa Ana reflects the historic floodplain of the Santa Ana River, with interbedded clays, silts, and sands that can extend well past 60 feet before hitting stiffer Pleistocene formations. Groundwater is often encountered at depths as shallow as 15 to 25 feet, a condition that complicates excavation and requires the raft design to account for buoyancy forces and potential hydrostatic uplift. Our approach follows the iterative procedure in ASCE 7-22 Chapter 12 for seismic base shear distribution, combined with soil-structure interaction modeling that captures the slab's rigidity relative to the underlying stratigraphy. We typically specify a minimum slab thickness of 18 to 24 inches for mid-rise structures, with thickened edges and interior beams to stiffen the mat against column punching. The concrete mix design is reviewed for sulfate exposure, given the occasional presence of sulfate-rich groundwater in pockets of central Orange County. Before finalizing the mat geometry, we often run a parallel analysis using data from test pits to confirm the near-surface stratigraphy and validate the assumed modulus of subgrade reaction across the building footprint.

Raft Foundation Engineering in Santa Ana: Managing Seismic and Soil Demands — Technical reference — Santa Ana

Site-specific factors

The difference in subgrade response between a site near the Santa Ana River channel and one closer to the older terraces around the Floral Park neighborhood can be striking. Near the river, loose saturated sands can trigger cyclic mobility during a strong earthquake, leading to a sudden loss of bearing support under the mat edges. In the terrace areas, overconsolidated clays can swell when wetted, imposing uplift pressures that a thin raft cannot resist without substantial reinforcing. A uniform mat design without localized stiffening under shear walls risks cracking at the re-entrant corners of the slab. We mitigate this by running a sensitivity analysis on the coefficient of subgrade reaction, varying it by up to 30% across the footprint to envelope the worst-case soil variability. The investigation almost always extends to at least two borings per 2,500 square feet of building area, with a minimum depth of 50 feet to capture any compressible layers that could cause long-term consolidation. Ignoring the perched groundwater table during the uplift check has led to more than one costly retrofit in downtown Santa Ana.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering1.biz

Reference standards

IBC 2024 (adopted by City of Santa Ana), ASCE 7-22 Minimum Design Loads and Associated Criteria, ACI 318-19 Building Code Requirements for Structural Concrete, ASTM D2487 Standard Practice for Classification of Soils, ASTM D1586 Standard Test Method for SPT and Split-Barrel Sampling

Typical values

Parameter	Typical value
Typical Slab Thickness (Mid-Rise)	18 – 30 in
Maximum Allowable Settlement (Total)	1.0 in (per IBC Table 1604.5)
Maximum Differential Settlement	0.5 in over 40 ft span
Seismic Design Category	D (Santa Ana, ASCE 7-22)
Minimum Concrete Strength	4,000 psi (sulfate-resistant per ACI 318)
Bearing Stratum (Typical)	Alluvial silty sand / stiff clay (N60 > 15)
Groundwater Depth Range	15 – 25 ft below grade

Common questions

What is the typical cost range for a raft foundation design in Santa Ana?

For a standard commercial or mid-rise residential project in Santa Ana, the geotechnical investigation and mat foundation design typically falls between US$1,070 and US$3,680. The spread depends on the number of borings required, the complexity of the soil-structure interaction analysis, and whether groundwater uplift modeling is needed.

How deep do the borings need to go for a mat foundation?

We follow IBC guidelines, which generally require borings to extend to a depth where the net stress increase is less than 10% of the existing overburden pressure. In Santa Ana's alluvial profile, this often means 50 to 80 feet below the base of the mat, depending on the building footprint and load intensity.

Can a raft foundation be used on expansive clays in Santa Ana?

Yes, but it requires specific design measures. We typically specify a void form system beneath grade beams and interior thickened areas, or design the slab as a structurally suspended floor on deep piers. A standard slab-on-grade mat without these measures is vulnerable to heave in the drier terrace soils found in parts of Santa Ana.

How long does the design process take?

Allow about three to four weeks from the completion of field exploration to the delivery of the final sealed design package. This includes lab testing of soil samples, completion of the geotechnical report, and the subsequent structural coordination for the mat reinforcement and geometry. Projects requiring city plan check expediting may extend the timeline slightly.

What is the difference between a raft and a conventional slab-on-grade?

A raft foundation is a structural mat designed to distribute building loads over the entire footprint, effectively bridging soft spots and reducing differential settlement. A slab-on-grade is a non-structural floor that bears directly on the ground and carries only its own weight plus live loads. In Santa Ana's seismic and variable soil conditions, a true raft is often required for anything over two stories.
