Seismic Tomography for Subsurface Imaging in Santa Ana

Geotechnical engineering with regional judgment.

LEARN MORE

A six-story mixed-use project near Santa Ana Boulevard required depth-to-bedrock confirmation after erratic CPT refusal. The site sat within the Los Angeles Basin, where Quaternary alluvium can mask irregular bedrock topography. The geotechnical team ordered a seismic refraction tomography line to map the velocity contrast between the young sediments and the underlying competent formation. By deploying 48 geophones along a 115-meter spread with a 5-meter spacing, the crew captured refracted arrivals that resolved the overburden thickness to within 0.4 meters. The resulting P-wave velocity model showed a clear 1,800 m/s transition at 14 meters depth, matching the top of the Fernando Formation. In Santa Ana, where the groundwater table sits shallow and the basin fill includes interbedded sands and clays, seismic tomography provides continuous coverage that boreholes alone cannot achieve. When the stratigraphy is complex or the project footprint is large, combining MASW with refraction tomography delivers both Vs and Vp profiles for a more complete site classification.

A velocity cross-section from seismic tomography can reveal a buried paleochannel or a fault step that a regular borehole grid would miss entirely.

Our service areas

Methodology and scope

The semi-arid Mediterranean climate of Santa Ana, with its dry summers and occasional winter storm surges, creates near-surface moisture contrasts that influence seismic velocity readings. A desiccated crust in September can produce a high-velocity surface layer that masks underlying softer zones. The acquisition team compensates by recording during early morning hours when temperature gradients are minimal and by using a 12-pound sledgehammer source on a metal plate for consistent energy input. Key characteristics of the method include non-invasive data collection, continuous subsurface coverage between borehole locations, and the ability to image velocity inversions that refraction alone might miss. Reflection processing adds value when the target is a deep interface—say, the contact between alluvium and the Puente Formation at 40 meters or more. The standard field setup runs 24 to 48 channels with 3- to 5-meter geophone spacing, yielding a depth of investigation roughly one-third to one-fifth of the spread length. Data processing follows a tomographic inversion workflow that iteratively updates a starting velocity model to minimize the misfit between observed and calculated travel times. The final output is a 2D velocity cross-section with color-coded Vp values that geotechnical engineers use directly for rippability assessment, excavation planning, and seismic site classification under IBC Chapter 16.

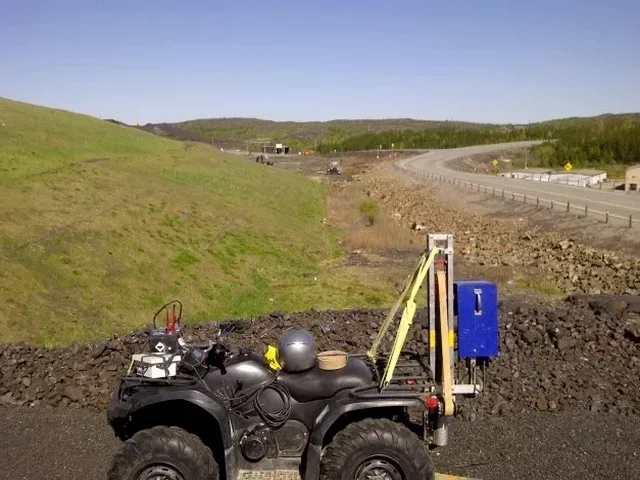

Seismic Tomography for Subsurface Imaging in Santa Ana
Technical reference — Santa Ana

Site-specific factors

Santa Ana's urban core expanded rapidly after the 1950s, filling former agricultural parcels with commercial and residential structures. Many of these older buildings sit on undocumented fill or alluvial deposits that were never characterized with modern geophysical methods. A site that appears uniform at the surface can hide velocity anomalies associated with buried stream channels, artificial fill pockets, or differential weathering of the underlying sedimentary units. Without a continuous velocity profile, a foundation design based solely on borehole data risks encountering unexpected material at pile tip elevations. Seismic tomography reduces this uncertainty by imaging lateral velocity variations across the entire site footprint. The ASCE 7 site classification process benefits directly from the measured shear-wave velocity profile, avoiding the conservatism of default Site Class D assumptions that can inflate seismic design forces. On sites near the Santa Ana River, where Holocene channel deposits and groundwater fluctuations create challenging conditions, the tomography data also supports liquefaction screening by identifying zones of low-velocity saturated sands that warrant additional investigation with CPT or SPT.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering1.biz

Reference standards

ASCE 7-22 Chapter 20: Site Classification Procedure for Seismic Design, IBC 2021 Section 1613: Earthquake Loads and Site Class Determination, ASTM D5777-18: Standard Guide for Using the Seismic Refraction Method, ASTM D7128-18: Standard Guide for Using the Seismic Reflection Method

Typical values

ParameterTypical value
Source typeSledgehammer (10-12 lb) on metal plate; weight drop for deeper targets
Receiver array24-48 vertical geophones (4.5 Hz or 10 Hz), 3-5 m spacing
Maximum spread length115-230 m typical; longer spreads for deep reflection targets
Depth of investigation (refraction)Approximately 1/4 to 1/5 of spread length
Depth of investigation (reflection)Up to 80-100 m with appropriate source energy and fold
Output parameterP-wave velocity (Vp) in m/s; 2D tomographic cross-section
Typical survey duration4-6 hours for a single 48-channel line including setup and breakdown

Common questions

How deep can seismic refraction tomography see at a typical Santa Ana site?

Depth of investigation depends on the spread length. With a 115-meter spread and a 12-pound hammer source, the method reliably images to about 20-25 meters in the alluvial soils common across Santa Ana. Extending the spread to 230 meters and switching to a weight drop or accelerated weight drop source can push investigation depth to 40 meters or more. For targets deeper than that, seismic reflection processing becomes the preferred approach and can reach 80-100 meters with proper acquisition parameters.

Does seismic refraction work if there is a low-velocity layer beneath a high-velocity cap?

Classic refraction interpretation using slope-intercept or delay-time methods cannot resolve velocity inversions—a low-velocity layer will not produce a first arrival and the hidden layer goes undetected. Seismic refraction tomography, however, uses an iterative inversion algorithm that models the full wavefield and can recover velocity inversions when the survey geometry provides adequate ray coverage. The key is using small geophone spacing and a dense shot pattern so that rays travel through the low-velocity zone and are recorded at the surface.

How does seismic tomography help with IBC site classification?

IBC Section 1613 and ASCE 7 Chapter 20 classify sites based on the average shear-wave velocity in the upper 30 meters, known as Vs30. Seismic refraction tomography measures P-wave velocity directly. To derive Vs30, the team typically runs a companion MASW or ReMi survey that measures Rayleigh-wave dispersion and inverts for Vs. Combining the refraction Vp model with the MASW Vs profile provides a solid site classification—often moving a site from the default Site Class D assumption to a more favorable Site Class C, which reduces seismic design forces and foundation costs.

What is the typical cost range for a seismic tomography survey in Santa Ana?

A single 48-channel refraction tomography line with tomographic inversion processing in the Santa Ana area generally ranges from US$2,860 to US$5,820, depending on the spread length, number of shot points, site access conditions, and whether reflection processing is included. A full site investigation with multiple intersecting lines or a 3D grid will fall at the upper end of that range or beyond. Each quote is project-specific and accounts for mobilization, crew time, data processing, and engineering interpretation of the velocity model.
