Undisturbed Sampling (Shelby Tube) in Santa Ana

Undisturbed sampling via Shelby tube is the standard method for retrieving high-quality soil specimens in clays and fine-grained soils, as outlined in ASTM D1587. In Santa Ana, where the Santa Ana River floodplain deposits — soft clays, silts, and loose sands — dominate the subsurface profile down to about 150 feet, obtaining truly undisturbed samples is critical for deriving reliable consolidation and strength parameters. The Alluvium and older Pleistocene terraces found across the city, from the Civic Center to South Coast Metro, demand careful tube advancement to minimize disturbance. Before mobilizing a Shelby tube program, it is common to first run a calicatas exploratorias to log stratigraphy and select the target sampling depths with precision.

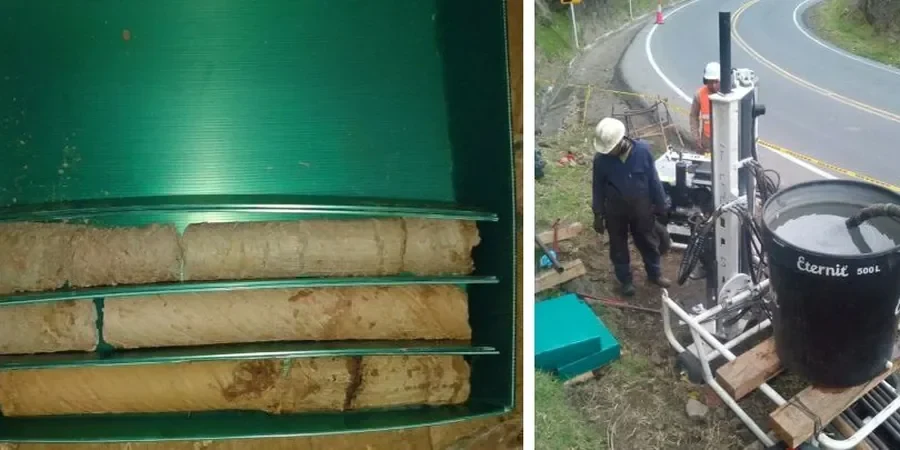

Shelby tube samples in Santa Ana's floodplain clays require area ratios under 10% to meet ASTM D1587 quality criteria.

Scope of work in Santa Ana

The contrast between soil conditions near the Santa Ana River channel and the older terrace deposits around the 17th Street corridor illustrates why a one-size-fits-all approach to undisturbed sampling fails here. In the floodplain, soft clays with undrained shear strengths below 500 psf require thin-walled tubes with area ratios under 10%, whereas the stiffer Pleistocene clays in the downtown area can tolerate slightly higher ratios. The equipment must also account for groundwater fluctuations: the water table in Santa Ana typically sits 10 to 20 feet below grade, and sampling below that level demands careful sealing to prevent disturbance from hydrostatic pressure. We complement Shelby tube sampling with ensayo triaxial testing on the same specimens to obtain undrained strength parameters for foundation design.

Undisturbed Sampling (Shelby Tube) in Santa Ana

Parameter	Typical value
Tube diameter	3.0 in (76 mm) standard
Wall thickness	0.035 in (0.9 mm) thin-wall
Area ratio (Ar)	< 10% per ASTM D1587
Maximum depth	150 ft (45 m) typical
Sample recovery	85-95% in cohesive soils
Storage time	≤ 14 days before extrusion

Risks and considerations in Santa Ana

A common oversight in Santa Ana is assuming that Shelby tube samples are automatically undisturbed. In our experience, the risk of sample disturbance increases when tubes are advanced too fast — exceeding 0.5 ft/min — or when the cutting edge becomes dull after four to six pushes. Disturbed samples yield compressed consolidation curves and lower undrained strengths, leading to overconservative foundation designs or, conversely, unsafe bearing capacities. The City's seismic design requirements under IBC and ASCE 7 amplify this risk: soft clays in the floodplain can amplify ground motions, and undisturbed sampling is the only reliable way to obtain the shear wave velocity correlations needed for site class evaluation.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Applicable standards: ASTM D1587-15 (Standard Practice for Thin-Walled Tube Sampling), ASTM D4220-18 (Preservation and Transportation of Soil Samples), IBC 2021 Chapter 18 (Soil Investigations and Foundations), ASCE 7-22 Site Classification (Section 20.3)

Our services

We offer two complementary services to support your undisturbed sampling program in Santa Ana:

Shelby Tube Field Sampling

Mobilization of rotary wash or hollow-stem auger rigs equipped with thin-walled Shelby tubes. We log all boreholes in accordance with ASTM D2488 and seal samples on-site to preserve moisture content.

Sample Extrusion & Lab Handling

Controlled extrusion of Shelby tube samples in our laboratory, followed by trimming for triaxial, consolidation, or direct shear testing. All procedures follow ASTM D4220 to maintain sample integrity.

Q&A

What is the typical cost range for Shelby tube sampling in Santa Ana?

For a standard project in Santa Ana, the cost ranges between US$460 and US$970 per Shelby tube sample, depending on depth, number of tubes, and site accessibility. This includes mobilization, tube advancement, and sealing.

How deep can Shelby tube samples be taken in Santa Ana?

In the Santa Ana area, we routinely retrieve Shelby tube samples to depths of 120 to 150 feet below grade, limited mainly by the capacity of the drill rig and the consistency of the soil. The deeper alluvial clays often require careful pre-drilling to avoid plugging.

What soil types in Santa Ana are suitable for Shelby tube sampling?

Shelby tubes work best in cohesive soils: soft to stiff clays, silty clays, and clayey silts. In Santa Ana, the young alluvial clays near the river and the older terrace clays downtown are ideal. Loose sands and gravels, common in the eastern parts of the city, require alternative sampling methods.
